Doepfer A-132-2

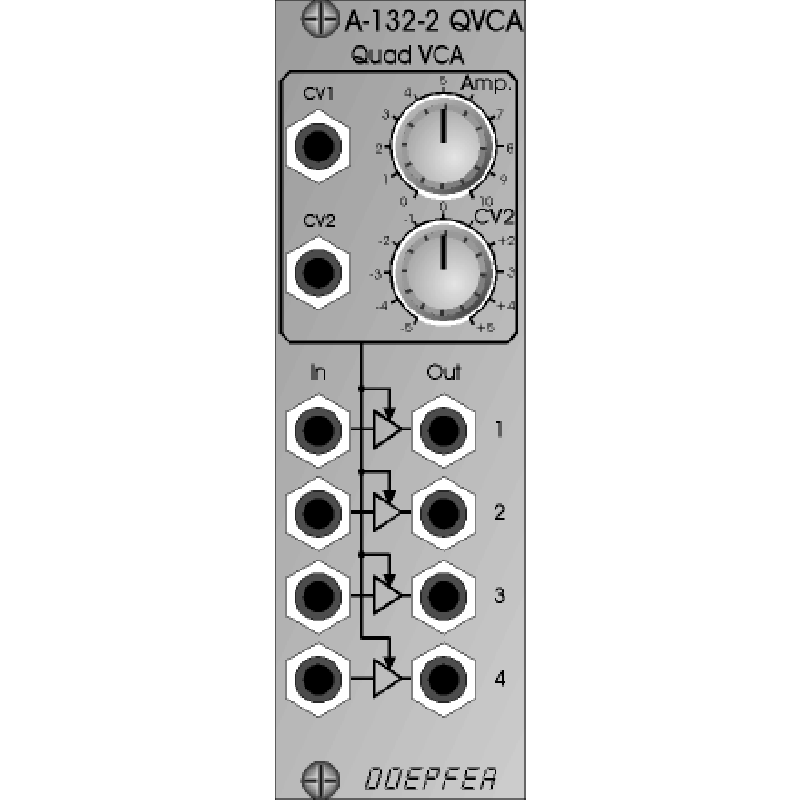

Module A-132-2 is a fourfold VCA with a common level control section for all four VCAs. The module can be used for all applications of simultaneous amplitude/level control of four different audio or CV signals. The module has a manual level control Amp. and two control voltage inputs CV1 and CV2 available. CV2 is equipped with a polarizer to adjust the effect and polarity of the external control voltage.

The A-132-2 is equipped with an internal connector that can be used to normalize the four input sockets to other modules. So far only the quadrature LFO/VCO A-143-9 is equipped with a suitable matching connector. To connect the A-132-2 and the A-143-9 no soldering is required. A short 10 pin ribbon cable with removable connectors on both ends is used. For the normalling to other modules (e.g. Quad AD/LFO A-143-1, Quad ADSR A-143-2, Quad LFO A-143-3 or other modules with several outputs like VCOs or multimode VCFs) the second side of the ribbon cable has to be wired manually to the outputs of the module in question.

Typical applications:
• Simultaneous level control of up to four modulation sources (e.g. ADSRs, LFOs)
• Simultaneous level control of up to four audio sources (e.g. VCO outputs, multimode VCF outputs, multi-channel audio signals)
• Simultaneous FM effects with different audio signals (with CV1 or CV2 in audio range)
